Wintal Mini HD digital set top box

Enjoy digital television in a small package

• Easy to use and setup
• Ideal for portable use:
  • Boats, caravans, and more
• Dual power: 12 V DC/ 240 V AC

• IR extender lead
  Allows you to easily hide your STB behind cabinets, TVs etc.

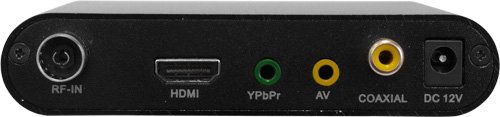

• Connections:

  • HDMI output
  • YPbPr component video output
  • Composite video output
  • Coaxial audio output
• Compact size: 110 (W) x 84 (D) x 24 (H) mm
• Net weight: 0.85kg
• 12 month Wintal warranty

Features:

• MPEG2 & MPEG-4Compatible
• Energy saving
• 1000 ch, favorite group,
• Multi language,
• Easy menu
• Software update possible
• Parental lock
• IR remote control
• EPG (Electronic Program Guide)
• Teletext function
• Y Pb Pr Output: 1080i/720p/576p
• HD Video Output: HDMI
• Automatic/ manual channel search

Specifications

• Video recorder: ISO/IEC 13818-2 (MPEG-2 video) MP@HL, ISO/IEC 14496-10 MPEG-4, AVC/H.264 HP@L4
• Demodulator mode: COFDM:2K AND 8K;
• FEC decoder: 1/2, 2/3, 3/4, 5/6,7/8
• Frequency Range: 170~862.0 MHz
• Bandwidth: 8M/7M/6M
• input level: -25db ~-78 dB
• Aspect ratio: 4:3、16:9
• Video resolution: 720p, 576p, 480p, 1080i, 576i, 480i
• Audio Decoder: MPGE1, MPEG2 Layer I&II
• Sound Mode: LEFT/RIGHT/STEREO
• Sampling Freq.: 32KHz、44.1KHz、48KHz
• A/V Output: 3.5mm to video 3x RCA
• YPbPr output: 3.5mm to 3x RCA
• Input Voltage: 100V ~ 240V AC 50/60 Hz
• Output Voltage: 12 V DC
• Power Consumption: <6 W
• Temperature: 0~40°C
• Humidity: <95%

Click for a larger version

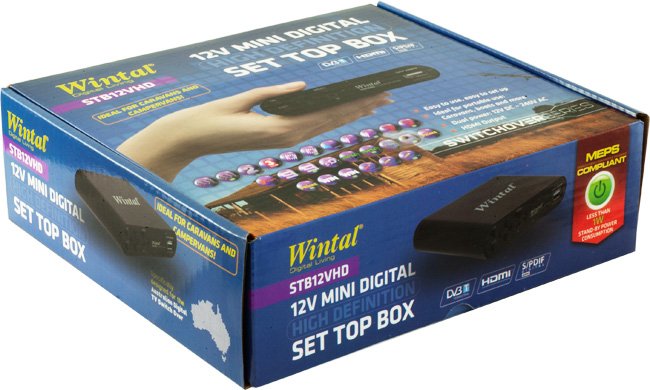

Package contents

• STB12VHD
• IR remote control
• 2x AAA batteries for remote
• 12V 1A switchmode power supply
• 3.5mm to 3 x RCA component lead
• 3.5mm to 3 x RCA composite video + stereo audio lead
• 1.8m IR extension lead
• Velcro sticker
